Revenue Intelligence : X-Ray

Contents:

What is X-Ray?

How confident are you that adhering to 'Industry sales metric benchmarks' is best for your sales team and not hurting your team's performance? What about which Reps you should focus your coaching efforts on, and what precisely should they be coached on?

This is where X-Ray comes in!

X-Ray helps sales leaders use their sales data to identify correlations between sales metrics and outcomes and optimize their team's target sales metrics based on metric values proven to drive sales. It also helps highlight the key differences between top and bottom performers, making it easy to identify who to coach and what to coach them on.

The enablement of Enhanced Analytics is necessary for the functionality of X-Ray Reports.

How to use X-Ray

The Basics

Filters

The 'User Name' and 'Team Name' filters on the top of the page limit the users displayed within the reports..

The 'Start Date' and 'End Date' filters (which default to showing the past 30 days) limit the period in which leaderboard data is generated so that the only data displayed is specific to sales conversations held when a deal was won within the defined period.

The 'Opportunity Type' filter limits the data displayed based on specific opportunity types rather than all opportunities.

Tracked Sales Outcomes

Two primary Sales Outcomes are tracked within each leaderboard, 'Won Revenue' and 'Opportunities Won.'

Won Revenue is pulled from the 'Opportunity Amount' field within the Salesforce standard Opportunity object for Closed Won opportunities where the user/reps name is listed as the Opportunity owner. By default, each report sorts by this value

Opportunities Won is based on the number of unique Closed Won opportunities within the Salesforce standard Opportunity object where the user/rep name is listed as the Opportunity owner.

The Types of X-Ray Reports

There are multiple X-Ray Reports, all with different metrics compared against the Won Revenue and Opportunities Won sales outcomes.

The "Summary" report displays a summary of the performance of your top, middle, and bottom reps across activity, behaviors, and coaching behaviors outcomes. Top reps are defined as the top 20% of users based on won revenue in the selected period, Middle reps are defined as the middle 60% of users based on won revenue in the selected period, and the bottom reps are defined as the bottom 20% of users based on won revenue in the selected period.  This helps to enable managers a quick glimpse into the metrics and areas that they should drill into with their team to see what insights are heavily correlated to revenue outcomes.

The "Activities" report displays metrics related to sales activities and actions, such as the number of inbound and outbound calls, Video meetings, accounts touched, and SMS activity. This is particularly useful in identifying which sales activities reps should prioritize their time on.

The "Behaviors" report displays conversation etiquette metrics in relation to the sales outcomes, such as Talk Rate, Talk Ratio, Vocabulary diversity, Active listening, and interruption rate. This is very helpful in identifying Rep behaviors that influence sales outcomes and optimizing your sales metric benchmarks based on actual success instead of generic industry standard metrics.

The "Moments™" report displays metrics related to the volume of real-time coaching notifications and checklists received by a rep, the adherence to collecting checklist data, and how reps are complying with notifications. This helps identify the correlation between real time coaching and revenue outcomes.

The "Coaching Behaviors" report displays metrics related to coaching activities, such as the number of their calls that were annotated, calls they listened to, and calls of theirs that were listened to. This is useful in determining which reps are getting coached and identifying the impact of coaching.



Reading X-Ray Reports and Looking for Patterns

Heatmapped metrics

The color gradient is related to the values within each individual metric column, in which darker colors are assigned to the higher values, and lighter colors are assigned to the lowest values. E.g., The highest values within the “won revenue” column will be in a darker blue, lower values will show in lighter shades of blue, and the lowest values in white.

Tips

  1. Don't only look for clusters of darker-colored cells; keep an eye out for clusters of lighter-colored cells, as they provide insights into metrics in which lower values are better than higher values.
  2. Remember that correlation doesn't always translate into causality! Sometimes patterns emerge by chance. Make sure you use your best judgment and adjust X-Ray report date ranges to see if patterns hold over larger/shorter and different timeframes. Example 2 below has an example of this.

Examples of X-Ray Metric Patterns

Example 1

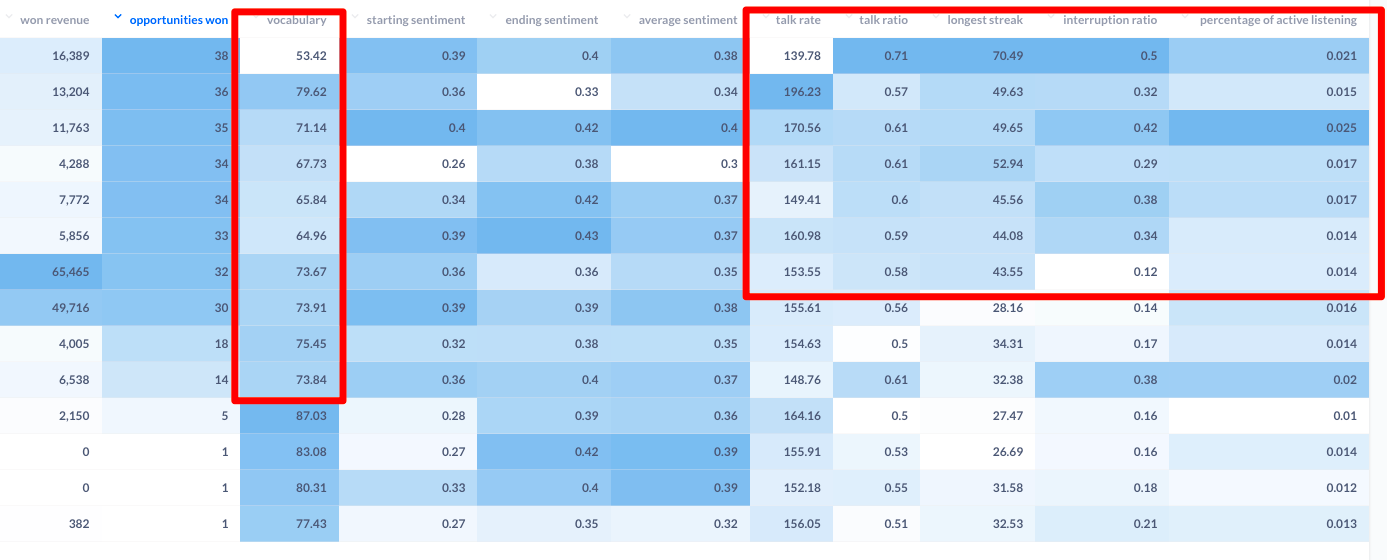

In Example 1, we see an excerpt from the 'Etiquette Ranking From Salesforce Opportunities' leaderboard sorted by the Opportunities Won Column.

These results show that Reps with the highest number of opportunities won, in general:

  1. Had a smaller vocabulary (smaller number of unique words per minute)
  2. Had a slower talk rate
  3. Talked more (had a higher talk ratio)
  4. Had longer monologues (longer talk streaks)
  5. Interrupted more
  6. Had a higher % of active listening

Example 2

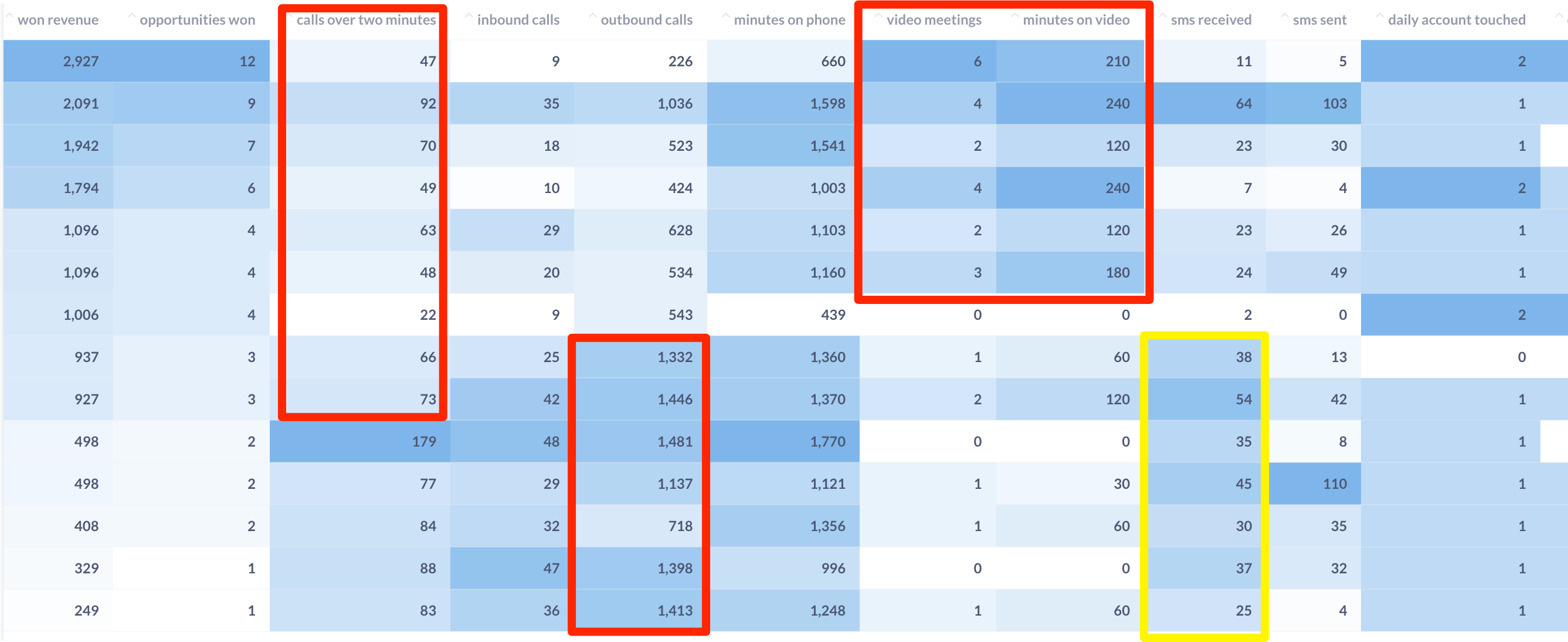

In Example 2, we see an excerpt from the 'Activity Ranking From Salesforce Opportunities' leaderboard sorted by the Won  Revenue Column.

These results show that Reps with the highest amount of Won Revenue, in general:

  1. Talked on the phone less overall, with fewer phone calls over 2 minutes.
  2. Had more video meetings, spent more time on video calls
  3. Did not make as many outbound calls

An example of potential correlation without causality is highlighted in yellow,  which could suggest that Reps that receive more SMS messages do not perform as well as Reps that receive fewer SMS messages. This is where additional research may be needed to understand what is happening, as one could argue that the more SMS messages a Rep receive, the more distracted they become. So asking Reps about how they handle incoming SMS messages here could be very insightful as to what is happening. The problem may not be the number of inbound SMS received but rather their process when they receive inbound SMS messages.

Metric Columns & Report Definitions

X-Ray reports are updated each day at 12:00 GMT.

Activity Metrics:

  • calls over two minutes: calls that have a duration greater than 2 minutes (120 seconds)
  • inbound calls: total number of inbound calls
  • outbound calls: total number of outbound calls
  • minutes on phone: total number of minutes an agent spent on audio calls (phone)
  • video meetings: total number of video calls (Zoom and Teams)
  • minutes on video: total number of minutes an agent spent on video calls (phone)
  • sms received: total number of SMS received
  • sms sent: total number of SMS sent
  • daily accounts touched: average number of accounts touched (either through meetings, calls, SMS, or email)
  • daily contact touched: average number of contacts touched (either through meetings, calls, SMS, or email)
  • flagged calls: total number of calls that are flagged

Behavior Metrics:

  • Vocabulary: the average number of unique words used per minute
  • Starting sentiment: average starting sentiment (scale from -1 to 1, where -1 is very negative, 0 is neutral, and 1 is very positive)
  • Ending sentiment: average ending sentiment (scale from -1 to 1, where -1 is very negative, 0 is neutral, and 1 is very positive)
  • Average sentiment: average overall sentiment (scale from -1 to 1, where -1 is very negative, 0 is neutral, and 1 is very positive)
  • Talk rate: average talk speed
  • Talk ratio: average time an agent spent talking in a call (e.g., a 0.52 talk ratio means that in a call, an agent spends 52% talking)
  • Longest streak (a.k.a. monologue): average time a rep spent talking without a 2 seconds pause
  • Interruption ratio: average time a rep interrupts in a call (e.g., a 0.013 interruption rate means that in a call, an agent spends 1.3% interrupting)
  • Active Listening %: Average percentage a rep spent actively listening or engaging in the speaker’s dialogue in a call. Active Listening is detected by the rep speaking a quick few words to show a participant is listening such as “uh huh” or “yeah I get that”; specifically fewer than 5 words and less than 2 full seconds of total talk time.

Moments™ Metrics

  • number of notificatons: the total number of warning, alert, and info notifications triggered for a rep over hte given period of time.
  • number of checklists: tthe total number of checklists triggered for a rep over hte given period of time.
  • checklist adherence rate: the perentage of time that a rep completes all items in a checklist
  • checklist item completion rate: the average percent of checklist items completed in a checklist.
  • compliance success: the percentage of time that a rep mentions a key phrase prior to an excluded notification to not require an notification
  • coached to success: the percentage of time that a rep is prompted with phrase excluded notification and complies prior to the end of the conversation.
  • compliance unsuccessful: the percentage of time that a rep is prompted with phrase excluded notification and does not comply prior to the end of the conversation.

 Coaching Behavior Metrics:

  • annotations given: total number of annotations given by an rep
  • annotation received: total number of annotations received by an rep
  • calls reviewed by other: total number of times a supervisor or peer listened to an rep’s call in real-time
  • calls reviewed: total number of times a rep listened to another rep’s call in real-time
  • moments notifications: total number of moments™ alerts triggered by a rep
  • minutes busy: total number of minutes a rep has a status of “Busy” or Custom Busy Statuses
  • minutes available: total number of minutes a rep has a status of “Available”
